Switch-Pros SP9100 Switch Panel Power System

Imagine you're deep in the wilderness, navigating rocky trails or setting up camp under the stars. The Switch-Pros SP9100 Switch Panel Power System becomes your ultimate tool, effortlessly managing your vehicle’s accessories. Whether you need to power your winch, activate auxiliary lights, or turn on your air compressor, the SP9100 puts full control at your fingertips.

With 8 customizable outputs and Master Mode to control multiple devices with one touch, it’s perfect for handling off-road challenges. Its RGB backlighting ensures visibility in low-light environments, while the built-in Bluetooth module lets you control everything from your phone for added convenience.

Rugged and reliable, the SP9100 boasts an IP67 waterproof rating, making it durable in extreme conditions. The automatic power-up feature ensures your system is ready the moment your vehicle starts, giving you peace of mind on every adventure.

The Switch-Pros SP9100 isn’t just a switch panel—it’s an indispensable tool for any overlander, providing seamless power and control when it matters most.

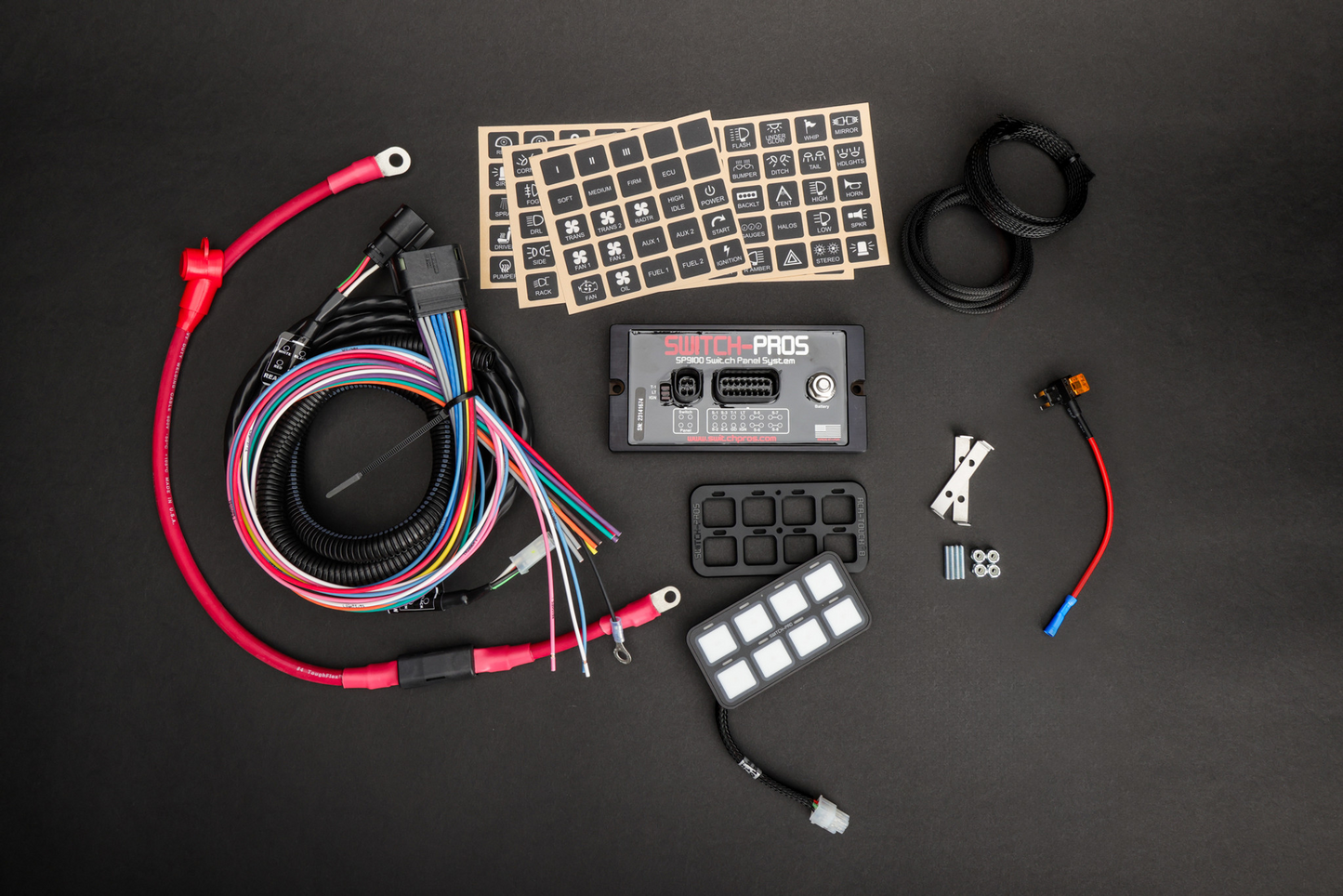

What’s Included?

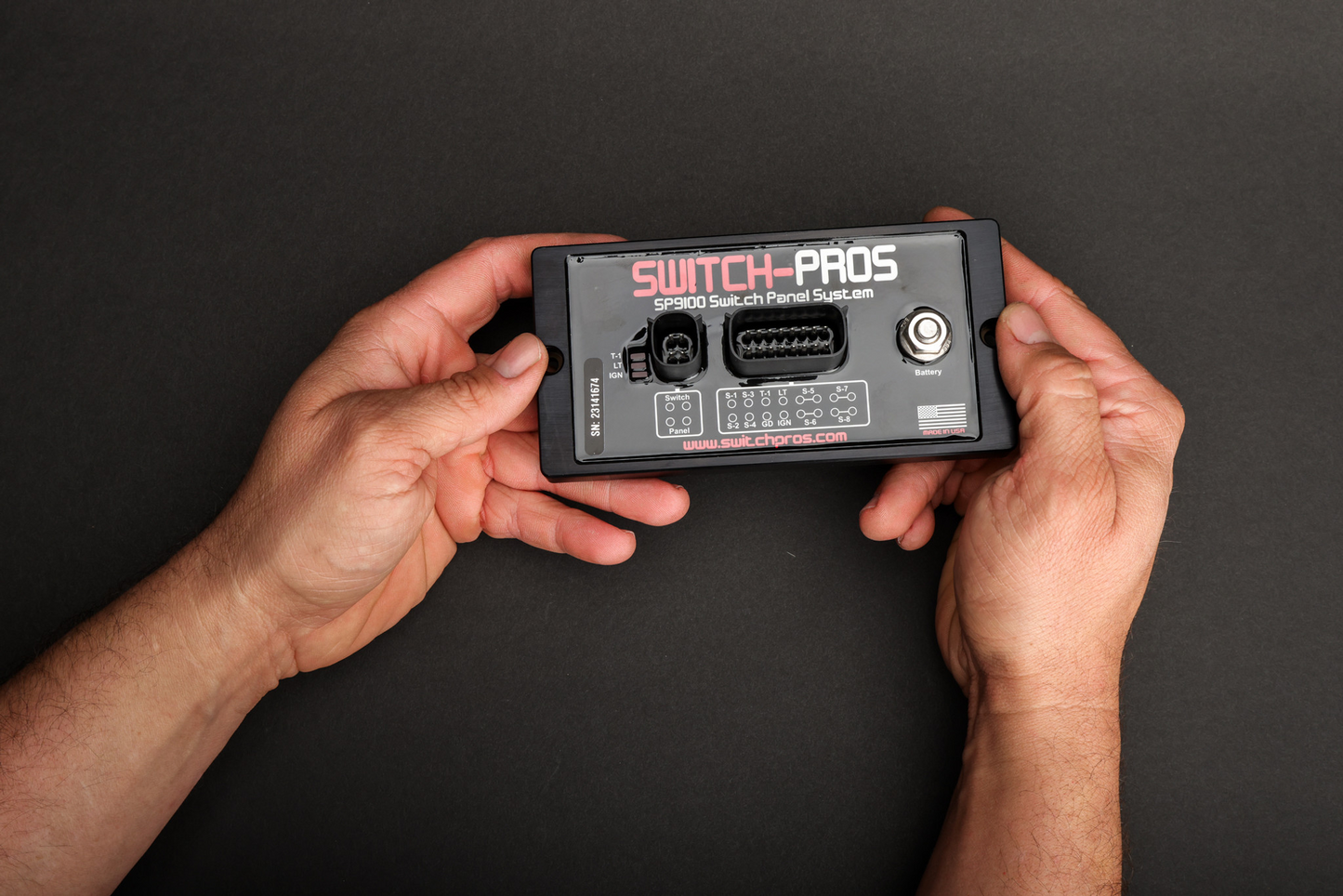

• Switch Panel and Power Module

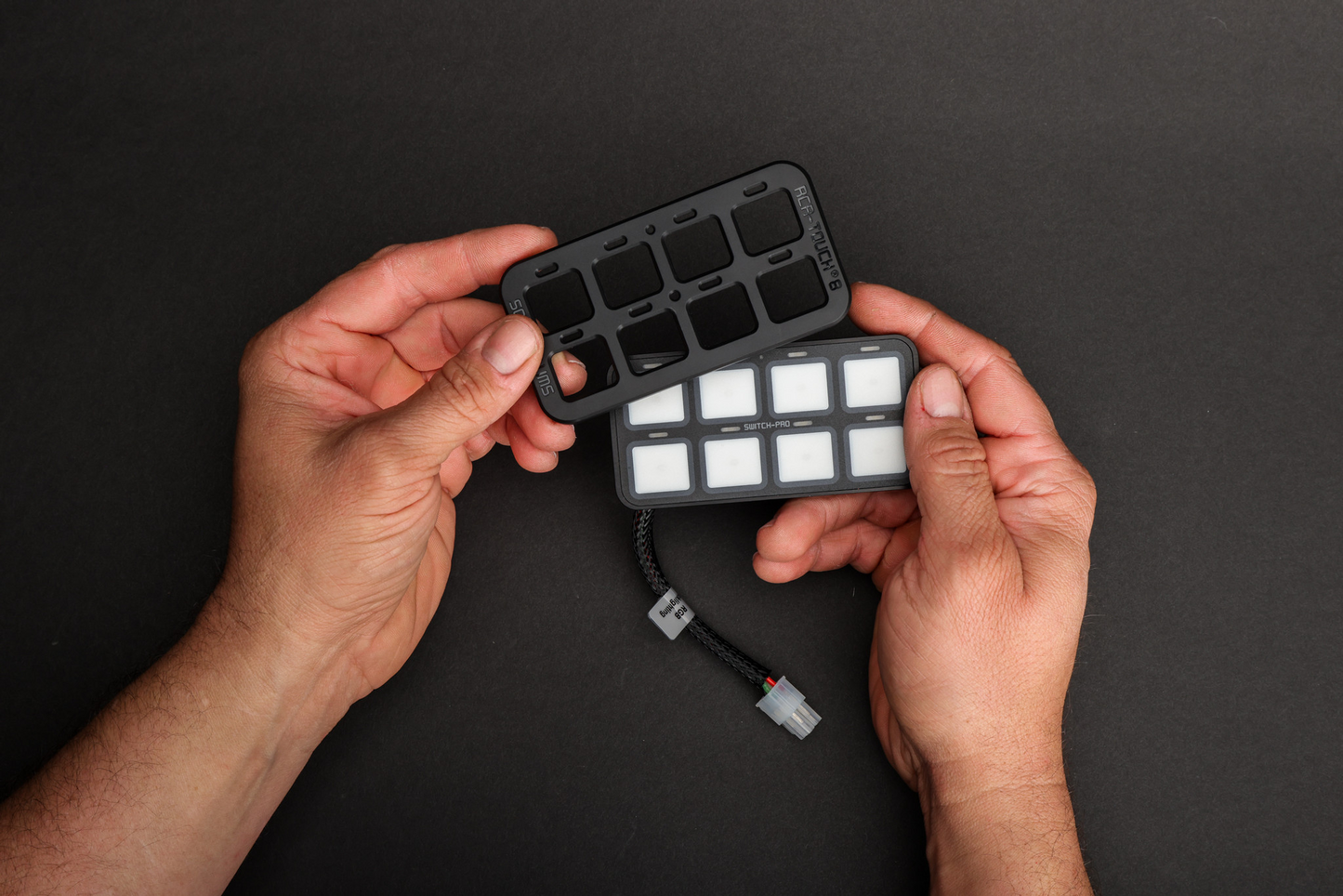

• RCR-Touch®8 Cover: snaps on for ease of specific switch selection while wearing gloves or riding rough terrain. (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 125A inline fuse
• 125 User-Selectable Legends (horizontal orientation)
• Installation brackets and hardware
• 16-pin color-coded output harness
• Detailed Installation Guide

Features

• RGB backlighting
• Built-in bluetooth module for use with free Switch-Pros App
• Program and operate your panel from any device with access to the iOS or Google Play Store
• Battery voltage readout on app screen
• Orange LED switch indicators
• LED input status indicators for easy troubleshooting on power module

Specifications

• 125amp Capacity
  • 8 Outputs: 4 rated @ 35A, 4 rated @ 20A
  • Adjustable Output Overcurrent Values
• Switch Panel Enclosure:  4”L x 2”W x .375”H
• Power Module: 6”L x 3”W x .5”H (excluding connectors)
• Power Module Under Hood Rating: 125°C to -40°C
• Switch Panel and Power Module Waterproof Rating: IP67

Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 7 other switches on AND off with one touch
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with User-Selectable Strobe patterns and One-Touch activation
• Automatic Power-Up upon vehicle start up
• Time Delay off
• No bulky relay box
• Two External Trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy Chain up to 3 switch panels to one power module

Proudly made in the USA

 Download Installation Guide Here
