Switch-Pros RCR-Force® 12 Switch Panel Power System

The Switch-Pros RCR-Force® 12 Switch Panel Power System is your command center, providing seamless control over your vehicle's accessories. Whether it's powering auxiliary lights, controlling your winch, or managing other critical systems, this panel makes off-road adventures safer and easier.

The RCR-Touch® cover ensures precise switch selection, even while wearing gloves or traveling on rugged terrain. With 17 programmable outputs and Master Mode, you can control up to 11 switches with one touch. The Bluetooth integration allows remote control via your phone, and the RGB backlighting ensures visibility at any time.

The RCR-Force® 12 is the essential tool every overlander needs to keep their adventures running smoothly and safely, no matter where the journey leads.

What’s Included?

• Switch Panel and Power Module
• RCR-Touch® cover, snaps on for ease of specific switch selection while wearing gloves or riding rough terrain  (United States Design Patent No. US D922,969 S)
• 11’ of Communication Cable between Switch Panel and Power Module
• Power Cable with 150A inline fuse
• 125 User Selectable Legends included (Horizontal orientation)
• Installation brackets and hardware
• 20-pin color-coded output harness
• 4-pin color coded high inrush output harness
• Detailed installation Guide

 Features

• RGB Backlighting
• Built-in Bluetooth module for use with free Switch-Pros App
  • Program and operate your panel from any device with access to the iOS or Google Play Store
  • Battery Voltage Readout on App screen
• Orange LED switch indicators
• 6 Programmable LED Status indicators

 Specifications

• 150amp capacity with 17 outputs
  • 4 rated @ 35A and 1 rated @ 30A (High In-Rush circuits)
  • 11 rated @ 15A, which can be combined for larger loads
  • 1 Low Side driver switch, rated @ 2A
    • Adjustable Output Overcurrent Values
• Switch Panel enclosure measures 4” L x 3” W x .375” H (United States Design Patent No. US D914,614 S)

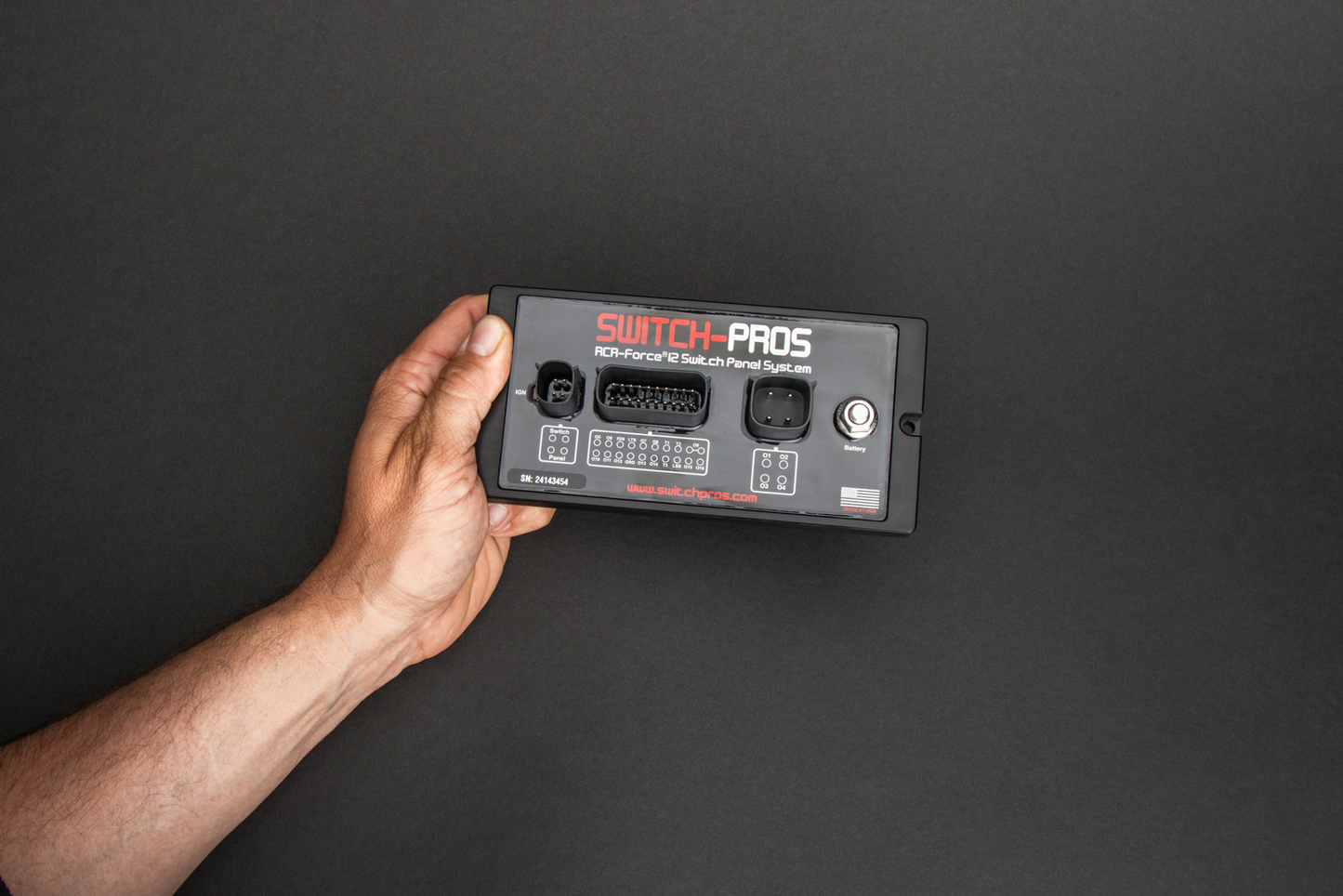

• Power Module Measures 7”L x 3.5”W x .5”H (excluding connectors)
• Power Module Under Hood rating 125°C to -40°C
• Switch Panel and Power Module Waterproof rating of IP67

 Programming & Other Features

• Preset Dimming function WITH MEMORY (100% to 10% brightness)
• Master Mode, with ability to turn up to 11 other switches On AND Off with one touch
• On-On-Off logic
• Touch Panel lockout
• On/Off or Momentary
• Ignition or Battery Input
• Flash or Strobe, with user-selectable strobe patterns and one-touch activation
• Automatic Power-Up upon vehicle start up
• Safety Lockout for specific switches
• Time Delay off
• No bulky relay box
• Up to 4 output wires can be assigned to 1 switch
• Three external trigger inputs can each activate up to four outputs (Active Hi or Active Low)
• Low Voltage Disconnect
• Sleep Mode for minimal power consumption
• Daisy chain up to 3 switch panels to one power module

Proudly made in the USA!

Download the Installation Guide Here
