Rock Krawler 2.5" Adventure Mid-Arm System with 2.25" RRD Shocks - Jeep JLU

The Rock Krawler Suspension JLU Wrangler 2.5 inch Adventure Mid-Arm System is specifically designed for Sport and Sahara owners who want a complete system, bolt-in installation, and the best articulation of any MID-ARM kit on the market. Our system proves its durability and off-road performance every time you hit the streets or trail!

The Term, "Adventure" comes from the inclusion of 2 non-adjustable control arms with our 100% Service Free Adventure Series joints installed at each end. Our industry leading, Adventure series mid-Arms feature 35 degrees of misalignment when paired with our Adventure series Joints at the frame connection and at the axle. The inherent bind in a factory JL control arm is greatly reduced. The arm is longer than the OEM control arm and allows you to correct the JL's caster up front. Driving you home with the most comfortable ride possible in a Wrangler, are our TRIPLE RATE coils. All 4 coils work together to achieve excellent on-road comfort that we feel is better than the OEM linear rate springs!

System Benefits:

• Complete bolt in system
• Excellent highway ride and handling
• The best off-road ability of all Mid Arm Systems
• Improved rear roll center
• Tuned Triple Rate Coils
• Spring Correction Seats
• Vehicle lean correction
• Upgradable to RK Longarm System
• Best Technical support in the industry
• Jeep remains level on all 4 corners
• Lifetime Warranty Coverage

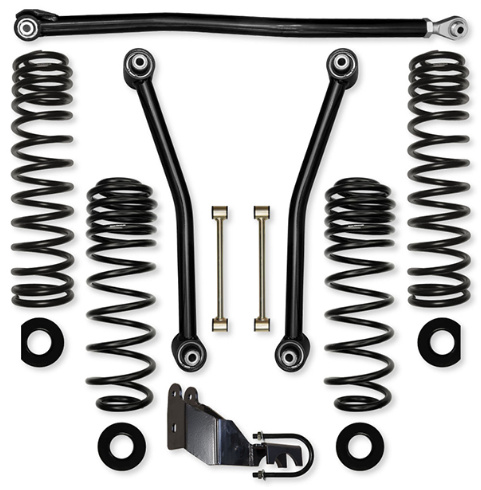

Parts Included:

• (4) Triple rate coil springs
• (2) Front set-length lower control arms
• (2) Front spring pads
• (1) Adjustable front track bar
• (2) Rear spring pads
• (2) Set-length rear sway bar links
• (1) Bolt-on rear track bar relocation bracket
• (4) 2.25" RRD Shocks

Wheel Fitment:

Sport and Sahara Wheel Fitment Recommendations

• 35” Tall Tires - Recommend 4.5” of Back Spacing
• 37” Tall Tires - Recommend 3.5” of Back Spacing

Rubicon Fitment Recommendations

• 35" Tall Tires – Recommend 4.5" of Back Spacing
• 37” Tall Tires – Recommend 4.5” of Back Spacing
• 38"/40” Tall Tires – Recommend 3.5" of Back Spacing

Tire Fitment:

• Sport and Sahara with Full OEM Fenders
• 35” Tall Tires (2” Bump Stop Height Recommended)
• Sport and Sahara with Trimmed or High Lined OEM Fenders
• 37” Tall Tires (3” Bump Stop Height Recommended)
• Rubicon with Full OEM Fenders
• 37” Tall Tires (2” Bump Stop Height Recommended)
• Rubicon with Trimmed or High Lined OEM Fenders
• 38” Tall Tires (3” Bump Stop Height Recommended)

General Notes:

• All lift heights based on Rubicon models for standard style build (i.e. front bumper and winch, rear bumper and full size spare).
• XR Package does not require OUR raised rear track bar bracket, the factory axle has a raised rear trackbar bracket, and for OUR systems that do not have a rear trackbar one must be added.
• If building with a spare delete we recommend dropping 1” in coil lift height for the rear.
• If building an overland or heavily up-fitted build in the back, we recommend upsizing 1” in coil lift height for the rear.
• We recommend a new front driveshaft if you plan to off-road routinely.

Installation Instructions are HERE
