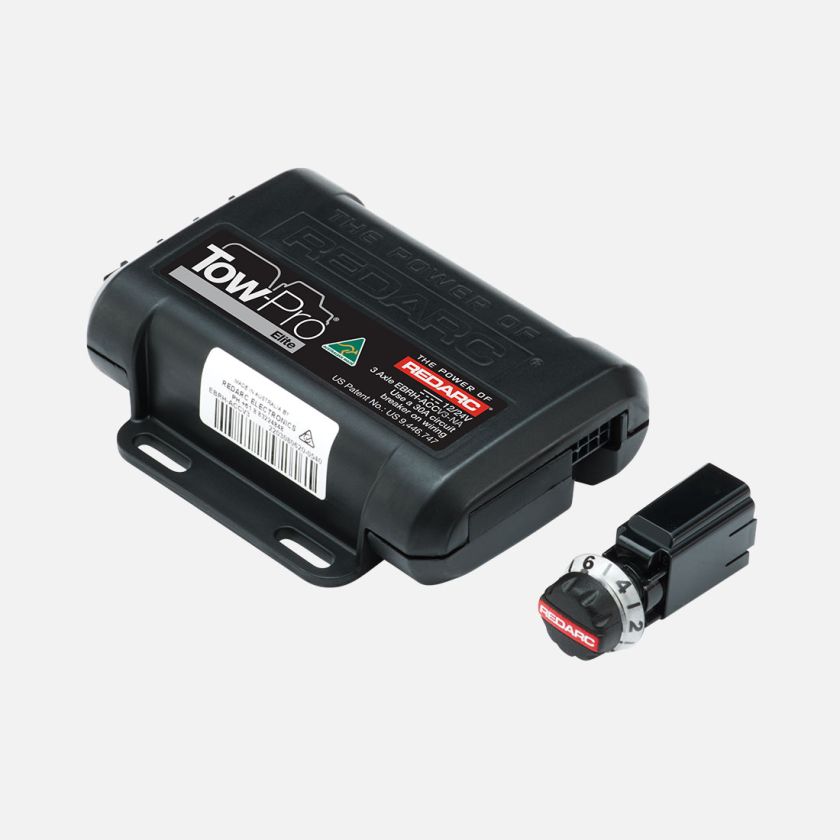

REDARC Tow-Pro Elite Brake Controller

Tow-Pro Elite Electric Brake Controller - Ultimate Towing Solution

The Tow-Pro Elite Electric Brake Controller is the premier choice for towing safety and performance, offering unparalleled control on both highways and off-road terrain. Engineered with Active Calibration for automatic adjustments and Proportional Mode for smooth, inertia-based braking, it delivers reliable stopping power. For rugged, off-road conditions, the User-Controlled Mode allows precise manual control over braking.

Weighing just 7oz (200g), the compact design fits easily into any setup and operates on a wide voltage range of 9-32V, making it compatible with both 12V and 24V systems. The dash-mounted remote head, 1-meter cable, and extreme operating temperature range of -4°C to 140°C ensure versatility and ease of use in any environment. Whether you're towing a single-axle trailer or one with up to three axles, the Tow-Pro Elite handles it with ease. It's also approved for Dexter & Tuson Sway Control Systems and works with both electric and electric/hydraulic brakes.

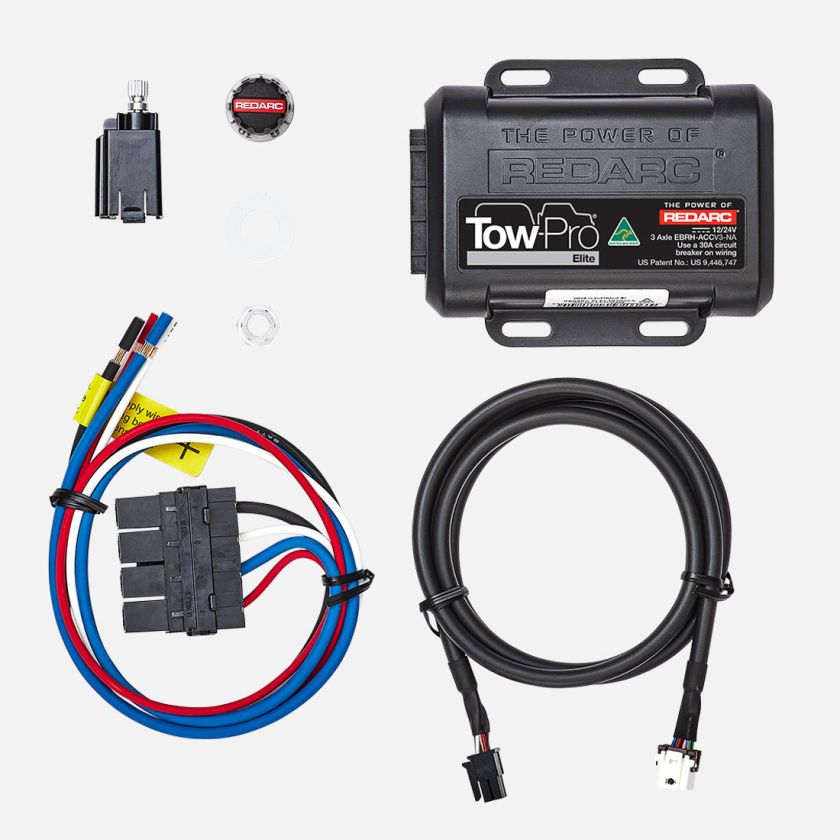

With the included Universal Bare Cable Harness and TPSI-001 Universal Switch Insert, installation is simple and adaptable to most vehicles. For anyone needing superior braking control for their towing adventures, the Tow-Pro Elite is the perfect solution. Designed for safety, durability, and ease of use, this brake controller ensures confidence on every journey.

SPECIFICATIONS:

• Active Calibration: Yes
• Proportional Mode (inertia sensing) for highway driving: Yes
• User-Controlled Mode for off-road driving: Yes
• Weight: 7oz (200g)
• Operating voltage: 9 - 32V

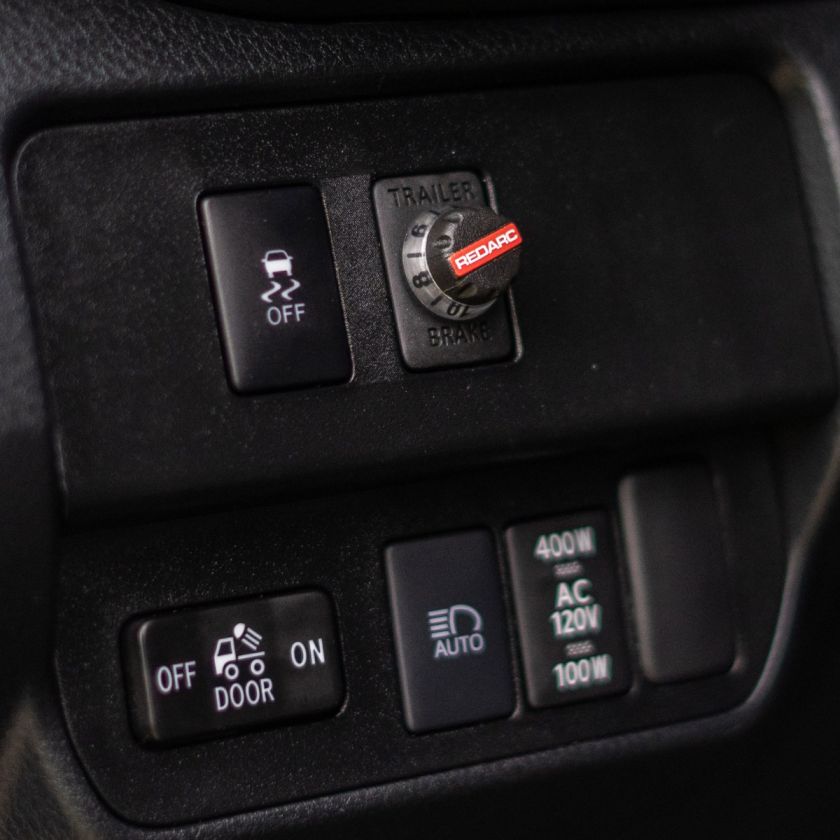

• Dash mounted remote head: Yes
• Dexter & Tuson Sway Control System approved: Yes
• Operates electric and electric/hydraulic brakes: Yes
• Brake Input Signal Voltage: ON: +12V nominal OFF: 0V (12V vehicles) | ON: +24V nominal OFF: 0V (24V vehicles)
• Suitable for 12V systems: Yes
• Suitable for 24V systems: Yes
• Cable Length: 1 m (remote head cable)
• Operating Temperature: -4°C to 140°C
• Supports 1-2 trailer axles: Yes
• Supports 1-3 trailer axles: Yes
• Input Voltage: 12V | 24V
• Max Power Current: 25A (12V vehicles) | 30A (24V vehicles)
• Includes Universal Bare Cable Harness: Yes
• Includes TPSI-001 Universal Switch Insert: Yes

Tow-Pro Elite Manual

Tow-Pro Elite Information Brochure
