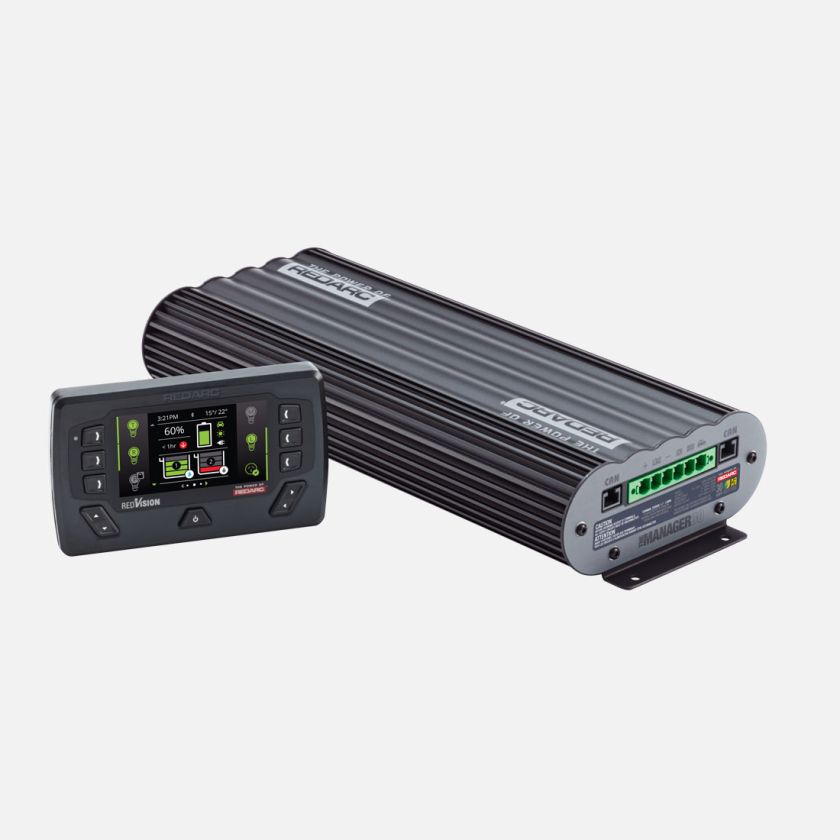

REDARC Manager30 with Color Display Screen

Manager30 with Color Display Screen – Ultimate Power Control and Monitoring

The Manager30 with Color Display Screen is an advanced power management system designed to provide real-time monitoring and full control of your vehicle’s electrical setup. Featuring a vibrant color display, this system allows you to easily track the status of your batteries, solar input, and power usage from a single, user-friendly interface.

With its intuitive design and advanced features, the Manager30 helps optimize your dual battery system and ensures your power needs are met, whether you're off-roading, overlanding, or simply seeking reliable power management. The color display provides clear, detailed information, making it easier than ever to monitor and adjust your system for peak performance. Built to withstand tough environments, the Manager30 is the perfect solution for anyone looking for seamless power management and peace of mind during their off-grid adventures.

FEATURES:

• Multi-Stage AC-DC Battery Charger
• Multi-Stage DC to DC Charger
• Maximum Power Point Tracking Solar Regulator

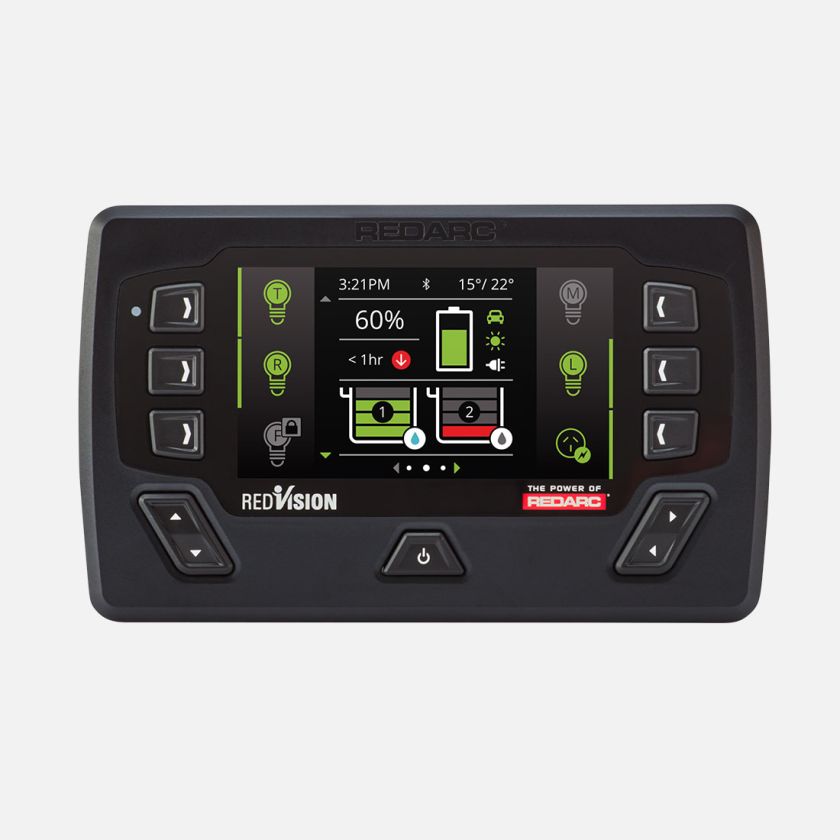

• Improved, 4.3” color display battery monitor
• Bluetooth connectivity to monitor battery performance via mobile device
• Dual Battery Isolator
• Load Disconnect Controller
• Super quiet operation
• Charges AGM, Gel, Calcium content, VRLA, Standard Lead Acid and Lithium (LiFePO4) batteries
• Tested to mains power safety standards in Australia

SPECIFICATIONS:

• Battery Chemistry Compatibility: Standard Lead Acid, Calcium content, Gel, AGM, or LiFePO4 types only
• Continuous Rating: 30A
• Input Fuse Rating: 50A
• System Compatibility:
  • Suitable for 12V Systems: Yes
  • Suitable for 24V Systems: No
• Solar Input Voltage: 9 - 30V
• MPPT Solar Regulator: Yes
• Installation Locations:
  • Cabin/Canopy: Yes
  • Trailer: Yes
  • Engine Bay: No
• Max. Charging Voltage: 14.4 - 16V (settings dependent)
• Output Fuse Rating: 40A (Not supplied; REDARC FK40 recommended)
• Operating Temperature: -40°F to 158°F
• Output Voltage: 12V DC
• Max. Rated Output Current: 30A
• Input Voltage: 110V AC / 9 - 30V DC
• Weight: 11.5lb (5.2 kg)
• Dimensions:
  • Width: 7.3" (186 mm)
  • Height: 3.1" (78 mm)
  • Depth/Length: 17.5" (445 mm)

Manager 30 Data Brochure

Manager 30 BMS1230S3R-NA Manual

RedVision Display Quick Start Guide

Recommended Fuse Kit: For optimal safety and performance, the REDARC 40A Fuse Kit (FK40) is recommended. This kit includes high-quality fuses and fuse holders designed to ensure a solid connection and protect your installation. Using inferior fuse holders can lead to poor contact, allowing dirt and other elements to cause excess heat, potentially damaging both the fuse and the holder.

What's Included in the REDARC 40A Fuse Kit (FK40):

• (2) Fuse holders
• (4) 40A fuses
• Cable crimps
• Detailed instruction sheet
