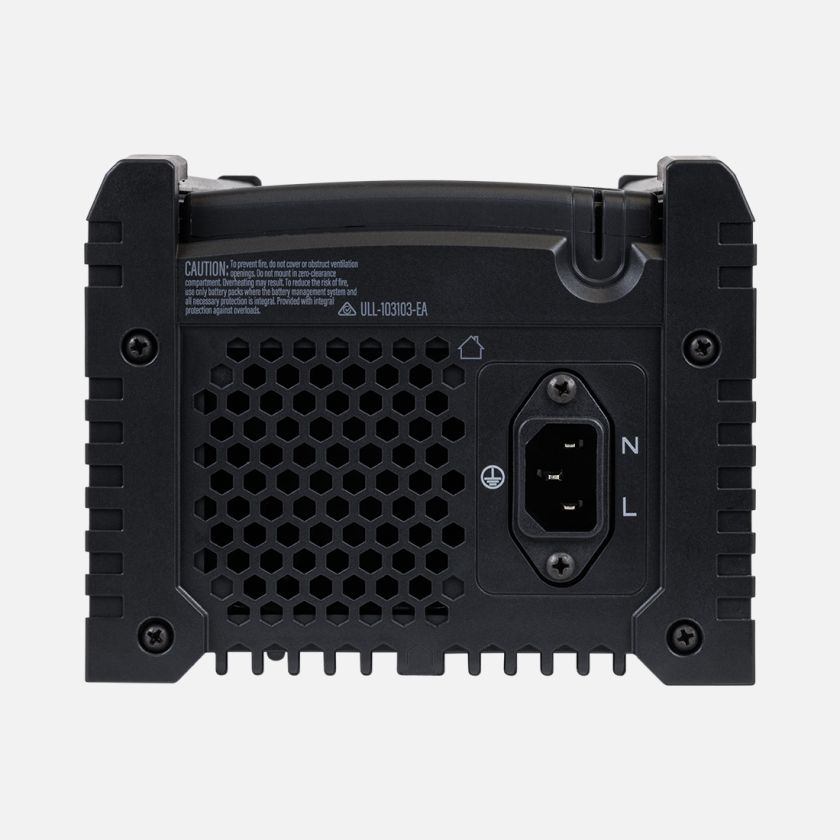

REDARC Manager Alpha100 with Redvision

Manager Alpha100 with RedVision – Advanced Power Management for Ultimate Control

The Manager Alpha100 with RedVision is a cutting-edge power management system designed to offer superior control and monitoring for your vehicle's electrical setup. Combining the versatile Alpha100 with the innovative RedVision system, this unit allows you to easily manage and monitor your dual battery system, solar input, and other power sources from a single interface.

With the RedVision app, you can access real-time data on your vehicle's power usage, battery health, and more, all from your smartphone or tablet. The Alpha100 ensures that your batteries are charged efficiently and safely, optimizing your power usage for off-grid adventures. Designed for tough off-road environments, it features a rugged build and is compatible with a wide range of battery types, ensuring reliable performance no matter where the journey takes you.

Perfect for overlanders, off-roaders, and those seeking ultimate control over their vehicle's power system, the Manager Alpha100 with RedVision is the ideal solution for managing and monitoring your energy needs with ease and confidence.

FEATURES:

• Simultaneous 100A charging from DC, AC and solar power
• Up to 55% smaller and 20% lighter than comparable systems
• Start battery back charge capability
• RedVision compatibility
• Bluetooth 5.1 technology
• 5 times more accurate monitoring than competitors

SPECIFICATIONS:

• Nominal Voltage: 12V
• Current Measurement Range: ±500A
• Input Voltage Ranges:
  • Start Battery: 9-32 VDC
  • Solar: 9-32 VDC
• Nominal Output Voltage: 12V
• Compatible Battery Types: Gel, AGM, Calcium, Standard Lead Acid, Lithium
• Nominal Current Rating: 100A
• AC Input Voltage Range: 95 – 264 VAC rms / 45 – 65 Hz
• Operating Temperature: –4°F to 140°F
• Weight: 13.4lbs (6.1 kg)
• Dimensions:
  • Height: 4.72” (120 mm)
  • Width: 6.06” (154 mm)
  • Depth/Length: 15.75” (400 mm)
• Warranty: 2 Years
