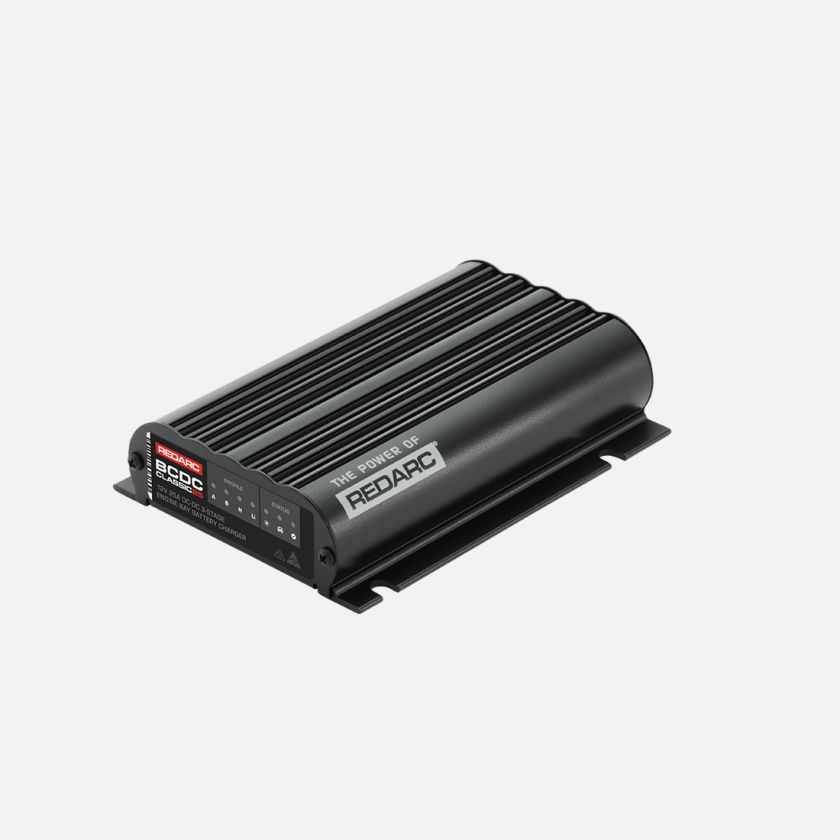

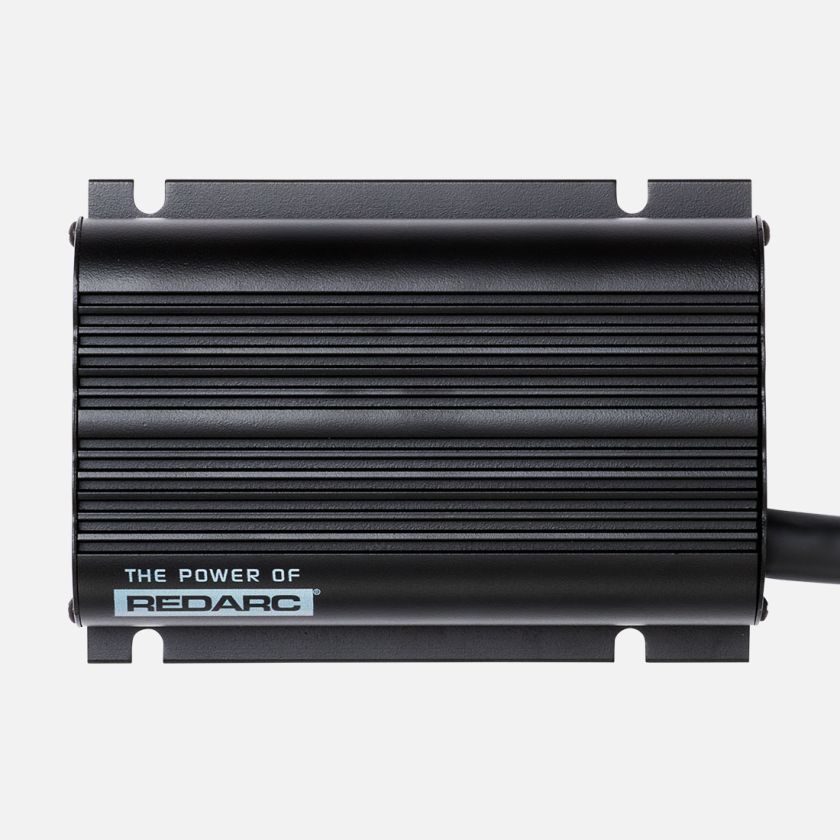

REDARC BCDC Classic25 12V 25A DC Battery Charger

BCDC Classic25 12V 25A DC Battery Charger – Reliable Power for Off-Grid Adventures

The BCDC Classic25 12V 25A DC Battery Charger is designed to provide efficient and reliable charging for your vehicle’s auxiliary battery. With an input voltage range of 9-32VDC (start battery) and 9-48VDC (solar), the Classic25 offers versatility for a variety of power sources, ensuring your batteries stay charged and ready for any adventure.

Compatible with a wide range of battery types, including AGM, Gel, Lead Acid, and Lithium, this charger provides a steady 25A output for optimal charging. Built to perform in extreme conditions, it operates in temperatures from –40°F to 185°F, making it ideal for off-road and overland vehicles. Compact and durable, the Classic25 is a reliable power solution that will keep your setup running smoothly on even the toughest journeys.

SPECIFICATIONS:

• Battery Chemistry Compatibility: Standard Lead Acid, Calcium content, Gel, AGM, or LiFePO4 types only
• Continuous Rating: 25A
• Power Type: DC to DC
• Nominal Output Power: 375W
• Input Fuse Rating: 40A (Not supplied; REDARC FK40 recommended)
• Solar Switch-On Voltage: 9V
• System Compatibility:
  • Suitable for 12V Systems: Yes
  • Suitable for 24V Systems: Yes
• Solar Input Voltage: 9 - 32V
• MPPT Solar Regulator: Yes
• Installation Locations:
  • Cabin/Canopy: Yes
  • Trailer: Yes
  • Engine Bay: Yes
• No Load Current: <100mA
• Max. Charging Voltage: 15.3V
• Output Fuse Rating: 40A (Not supplied; REDARC FK40 recommended)
• Operating Temperature: 5°F to 176°F
• Output Voltage: 12V DC
• Max. Rated Output Current: 25A
• Input Voltage: 9 - 32V
• Standby Current: <8mA
• Connector Type: Bare wire
• Weight: 35.3 oz (1 kg)
• Dimensions:
  • Width: 4.7" (120 mm)
  • Height: 1.5" (37 mm)
  • Depth/Length: 6.5" (165 mm)

BCDC1225D Instruction Manual

BCDC Information Brochure

Recommended Fuse Kit: For optimal safety and performance, the REDARC 40A Fuse Kit (FK40) is recommended. This kit includes high-quality fuses and fuse holders designed to ensure a solid connection and protect your installation. Using inferior fuse holders can lead to poor contact, allowing dirt and other elements to cause excess heat, potentially damaging both the fuse and the holder.

What's Included in the REDARC 40A Fuse Kit (FK40):

• (2) Fuse holders
• (4) 40A fuses
• Cable crimps
• Detailed instruction sheet
