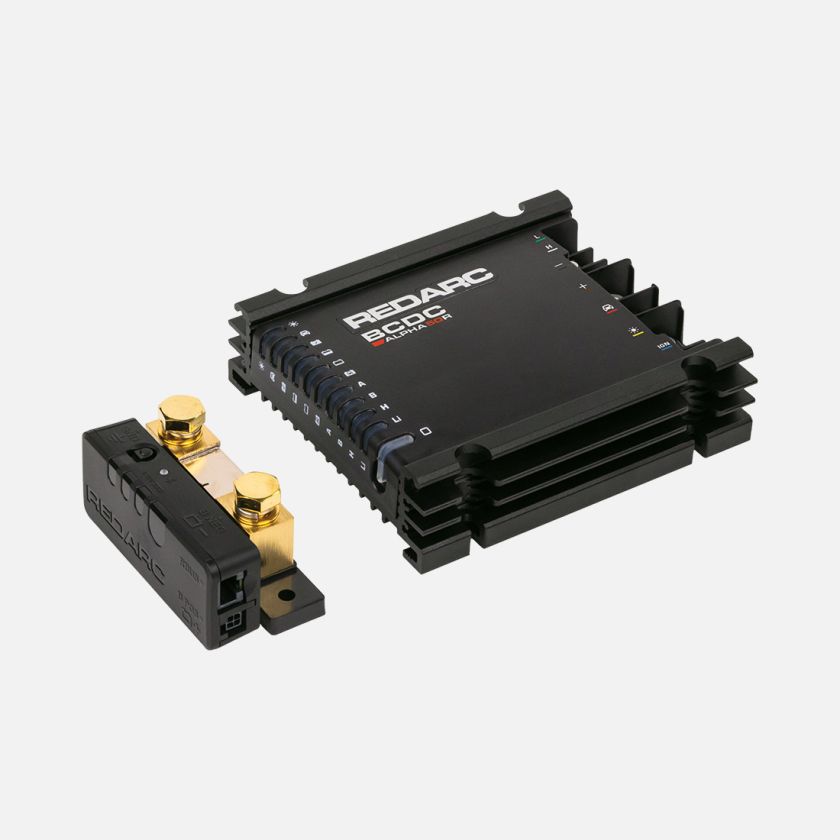

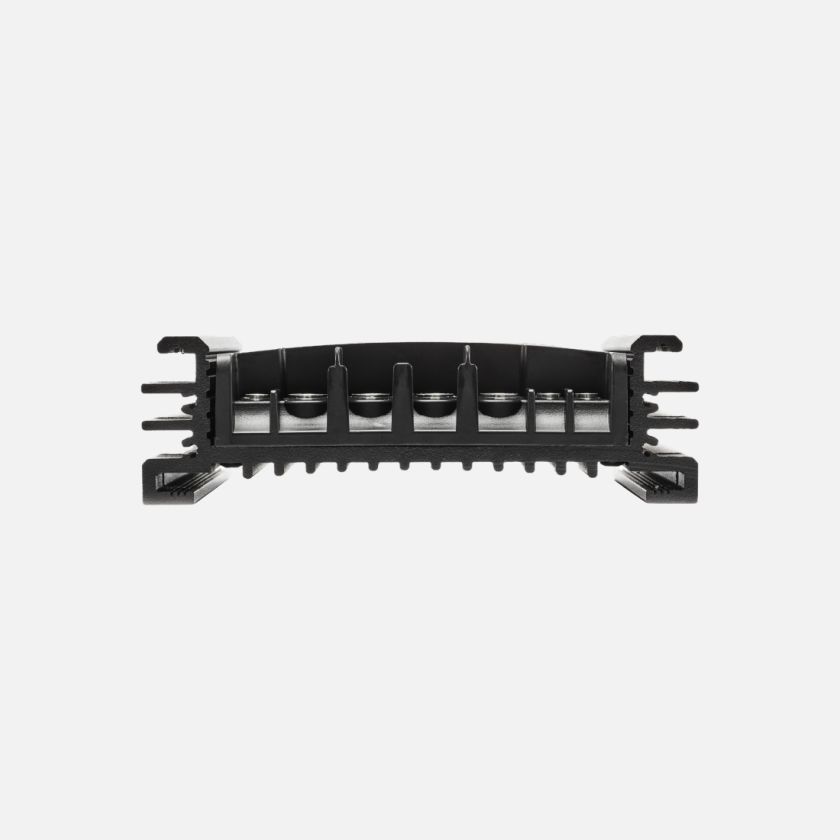

REDARC BCDC Alpha50 R DC Battery Manager

Manage Your Power with the REDARC BCDC Alpha50 R DC Battery Manager

The REDARC BCDC Alpha50 R DC Battery Manager is your all-in-one solution for managing dual battery systems, whether you're off-road or on an extended overland adventure. With its 50A charging capability, this battery manager ensures your auxiliary battery is charged efficiently and safely, even in the most demanding environments.

Designed to handle both solar and DC inputs simultaneously, the Alpha50 R optimizes charging from your vehicle and solar panels, ensuring that your batteries remain topped up regardless of the conditions. It also supports a wide range of battery types, including lithium, AGM, and lead-acid, giving you flexibility based on your setup.

Built for rugged use, the BCDC Alpha50 R features multiple layers of protection, including temperature compensation, short circuit, and overload protection, ensuring reliable performance in extreme temperatures and rough conditions.

For adventurers looking for a powerful, efficient, and dependable solution to keep their batteries charged and their gear running, the REDARC BCDC Alpha50 R is the ultimate choice.

FEATURES:

• 50A Charging from DC and solar power
• Charge all common automotive battery types including heated and standard Lithium (LiFePO4)
• Easy installation with pushbutton interface and screw connections
• Use excess solar to charge back to your start battery
• Recover a flat start battery in just 15 minutes with the push of a button or remotely from the smartphone app
• Remote monitoring and control from the RedVision app with Bluetooth
• Limit input current to protect vehicle alternators—making it suitable for vehicles with low surplus current or small DC converters like hybrid and electric vehicles.
• Future proof charging with over-the-air updates
• Pushbutton interface and screw connections make installation easy

SPECIFICATIONS:

• Start Battery Input Voltage Range: 9 - 32V DC
• Solar Input Voltage Range: 9 - 48V DC
• Nominal Current Rating: 50A
• Operating Temperature: –40°F to 185°F
• Weight: 2.1lbs (0.96 kg)
• Height: 1.73" (44 mm)
• Width: 6.46" (164 mm)
• Depth/Length: 5.75" (146 mm)
• Warranty: 2 Years
• Output Voltage: 12V
• Max. Rated Output Current: 50A

BDDC Alpha 50R Instruction Manual

BCDC Alpha 50R Installation Guide
