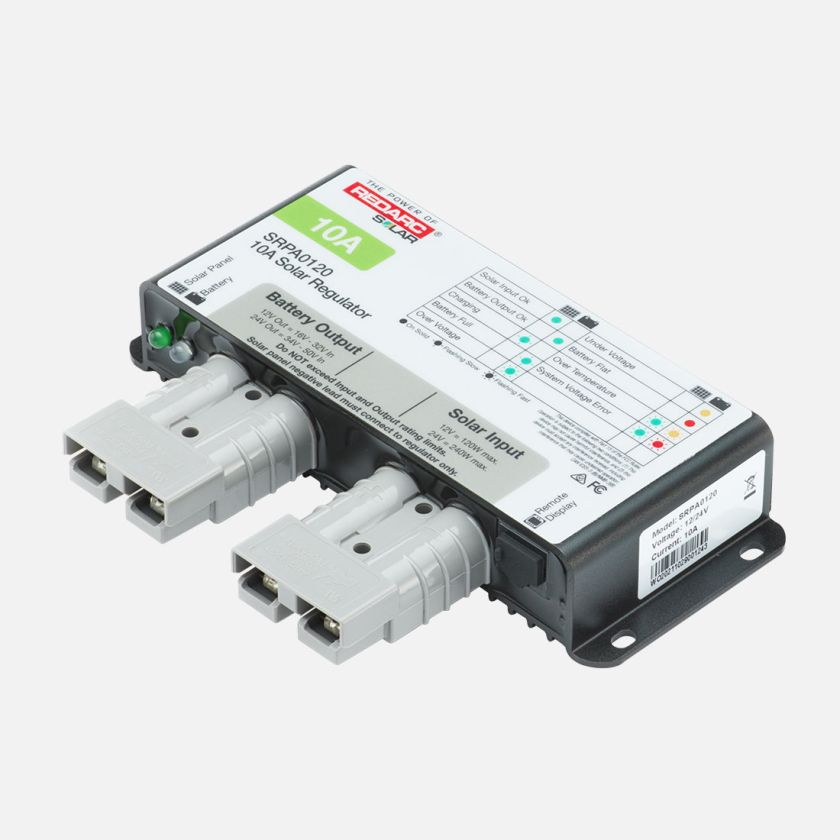

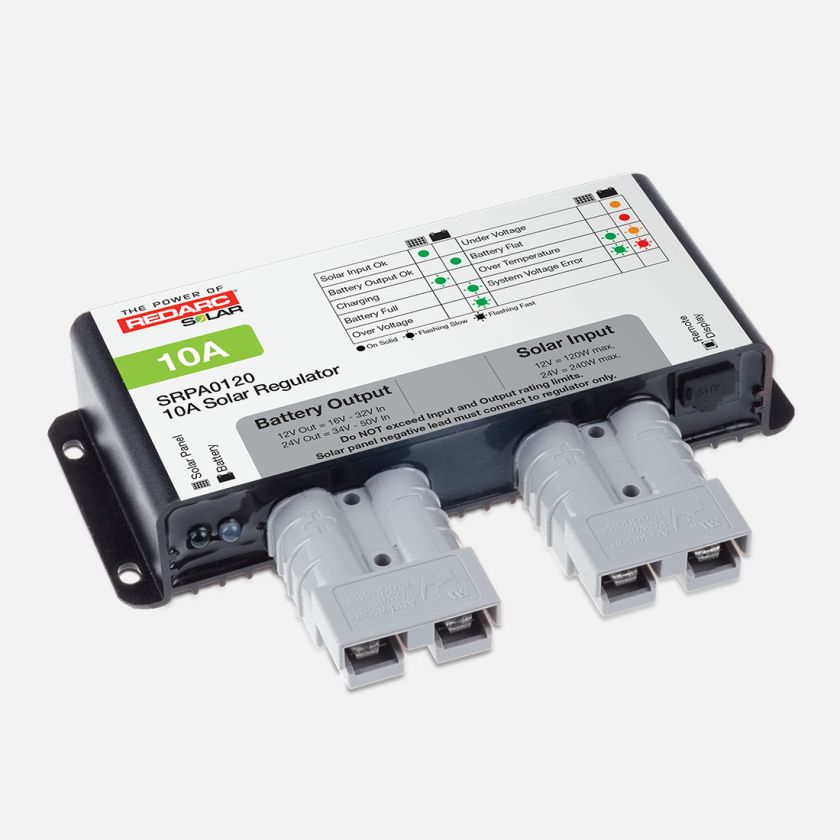

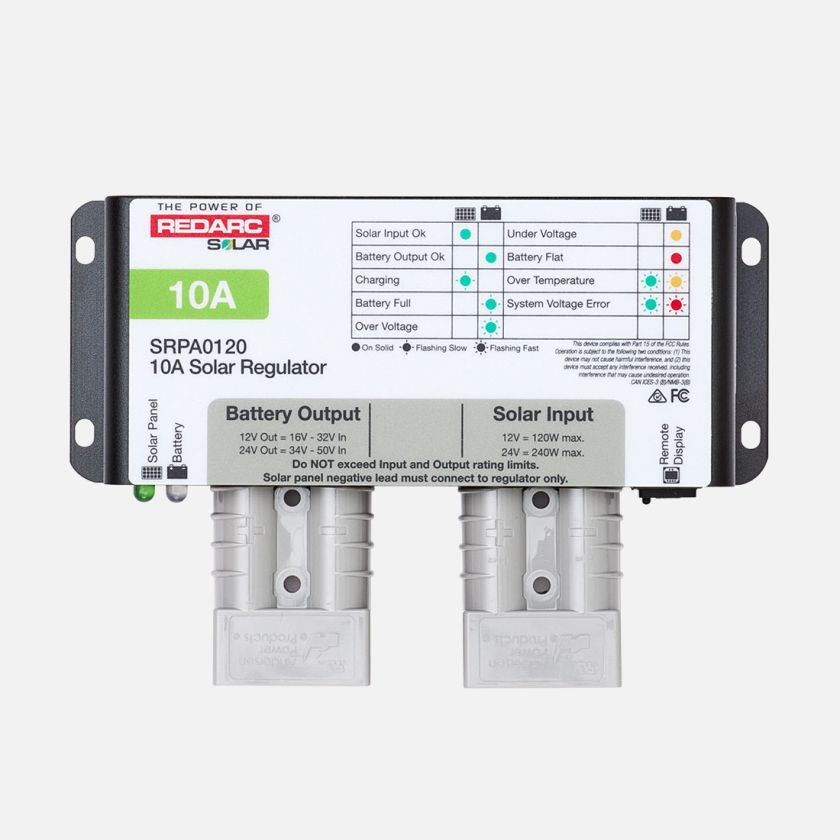

REDARC 10AMP Solar Regulator

REDARC 10 Amp Solar Regulator: Compact and Efficient Solar Power Control

The REDARC 10 Amp Solar Regulator is a compact and reliable solution for managing solar power in smaller setups. Designed to prevent overcharging and optimize battery performance, this regulator ensures efficient energy flow from your solar panel to your battery. Ideal for off-grid use, camping, and overlanding, it provides precise control over your solar system. With a durable build and easy installation, the REDARC 10 Amp Solar Regulator is the perfect choice for those seeking reliable, safe power management in a compact package.

FEATURES

• Multi-stage charging- boost, absorption, and float
• Works with multiple battery types (REDARC Solar Remote Monitor required)
• Ideal for permanent installation or portable systems
• Multiple levels of protection – over temperature, over charge, reverse polarity
• Genuine  Industry Standard  Anderson™ SB™50 plug connection

SPECIFICATIONS

• Max. Power Voltage: 120/240W
• Operating Temperature: −31°F to 131°F
• Weight: 1 lb (480 g)
• Height: 1.1" (28 mm)
• Width: 6" (153 mm)
• Depth | Length: 3.68" (98 mm)
• Warranty: 2 Years
• Connector Type: Anderson™ SB™ 50
• Input Voltage: 12V / 24V
• Max. Rated Output Current: 10A


IMPORTANT NOTES

• Battery default setting is AGM. The REDARC Solar Remote Monitor to change battery types and configuration settings is requited.
• Not compatible with Lithium (LiFePO4) batteries.

Product Manuals and Additional Information:

Solar Regulator Manual
