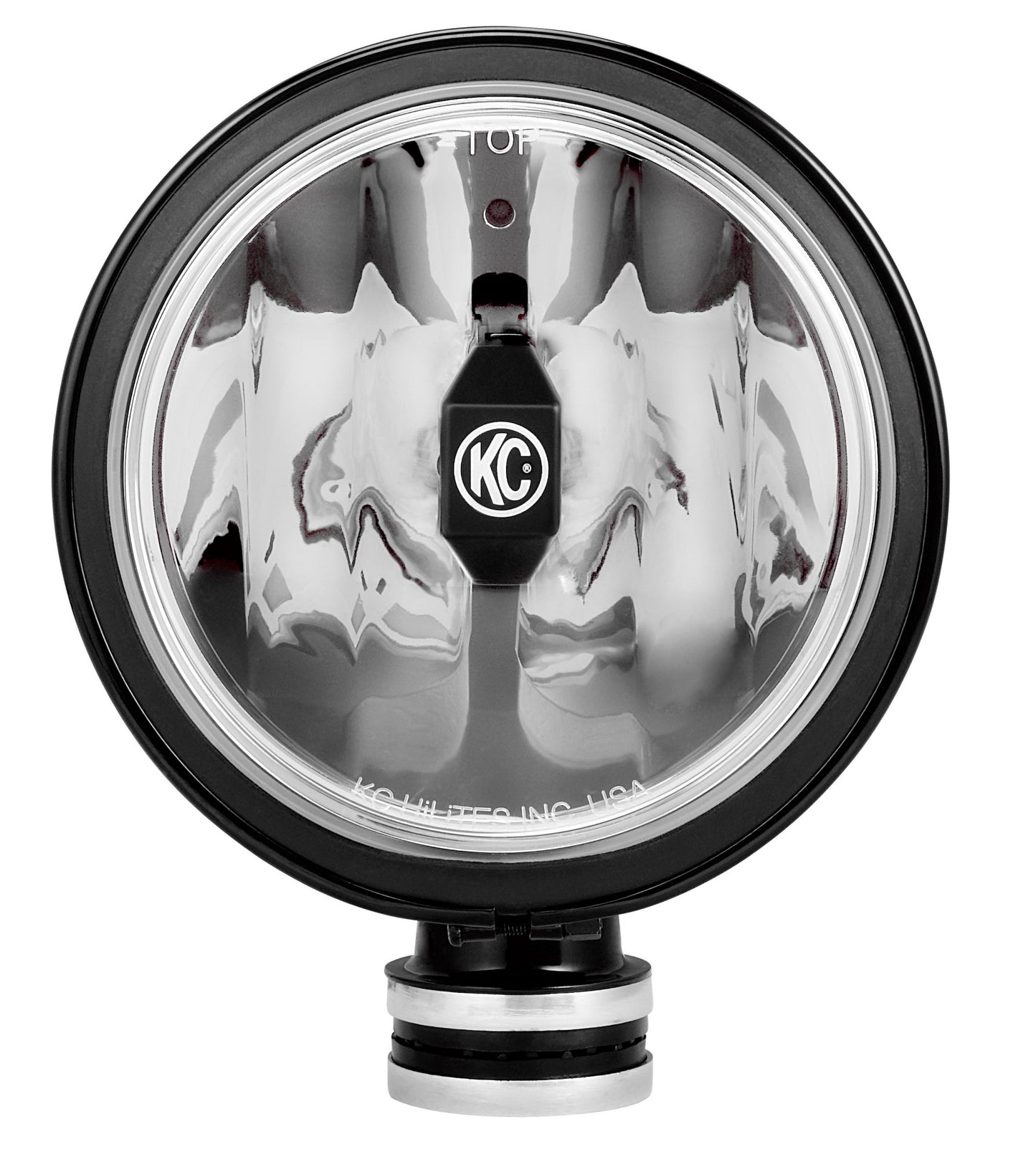

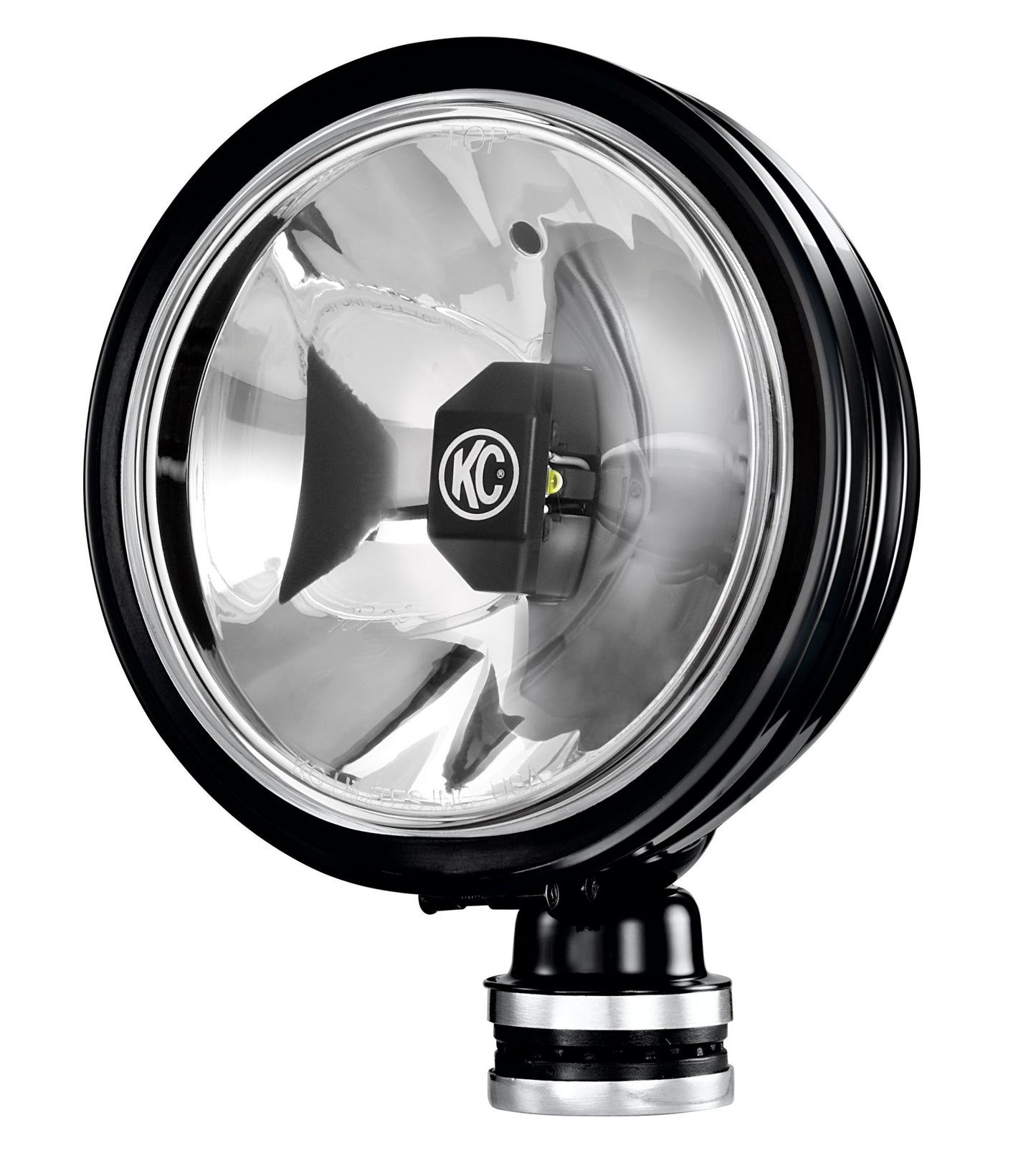

6" Daylighter Gravity® LED SAE - Driving Beam - Pair

FEATURES

• 2 x 20W Gravity® LED G6 optical inserts
• Black Powder Coated Steel housing
• Hard Coated Polycarbonate Lens
• Driving Beam Pattern

LIGHT PERFORMANCE (PER LIGHT)

• Raw Lumens: 2,300 lm
• Lux @ 10 Meters: 1,310 lx
• Candela: 131,000 cd
• Beam Distance (Meters): 724m

SPECIFICATIONS (PER LIGHT)

• Wattage: 20W
• LED Source: CREE XPL HD LED
• Amp Draw: 1.63A
• Voltage: 9V-32V
• IP Rating: IP67
• Product Dimensions: W - 6.22" x H - 8.42" x D - 5.38"

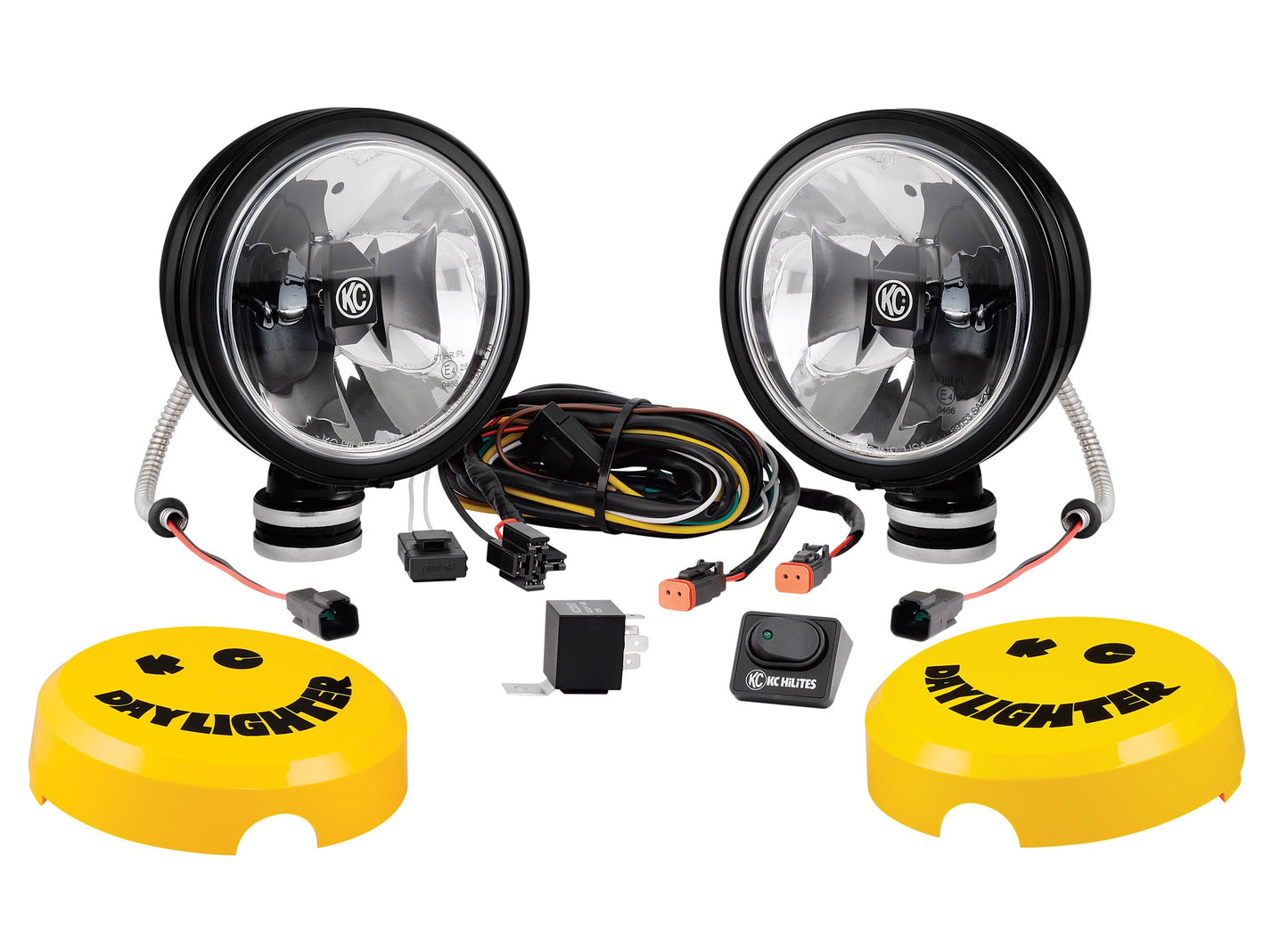

PARTS INCLUDED

• (2) 20W 6" Gravity® LED Daylighter lights
• Deluxe Wiring Harness w/ 2-Pin weatherproof connectors
• (2) Protective KC Daylighter light Guards
• 30A Illuminated Switch w/ Switch Panel

GRAVITY® GRD EXTREME OUTPUT AND EFFICIENCY

Gravity® Daylighters are powered by our G6 LED optical inserts which deliver an incredible 1,310 lx @10m using only 1.63A per light. Our patented GRD (Gravity® Reflective Diode) system aims the LEDs into the precision reflectors to capture all the light and project it forward.

AVAILABLE BEAM PATTERN AND ADVANTAGES

Driving Beam - SAE & ECE street legal beams provide added peripheral visibility and while reaching further than stock lights.

ADJUSTABLE MOUNTING FOR ACCURACY AND PRECISION

Our time-tested Daylighter shock mount system is resilient and allows users to accurately aim the lights ensuring beam stability and consistency.

RACE PROVEN STRENGTH & DURABILITY

The race-proven steel housing combined with our IP67 rated Gravity® G6 LED optical insert creates an extremely strong and durable combination that will withstand the harshest of environments and terrains.

Warranty: Please visit kchilites.com/warranty for details and exceptions.
